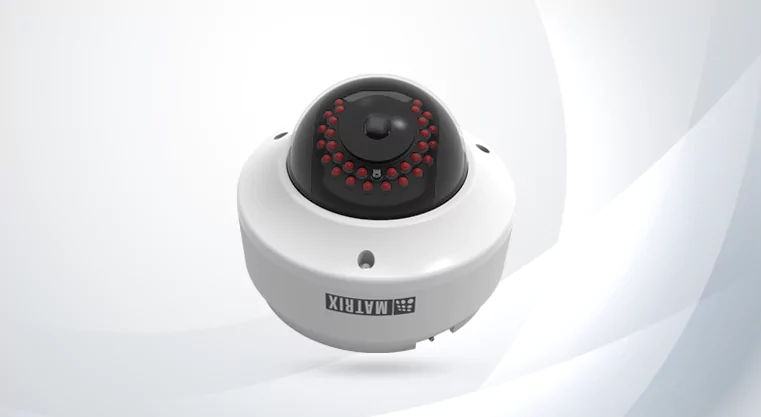

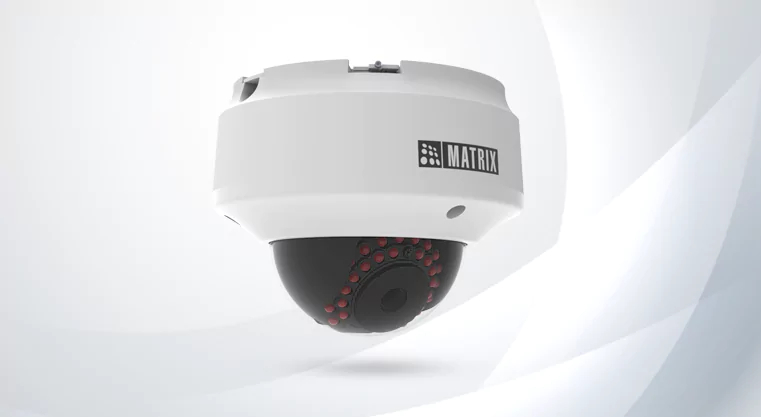

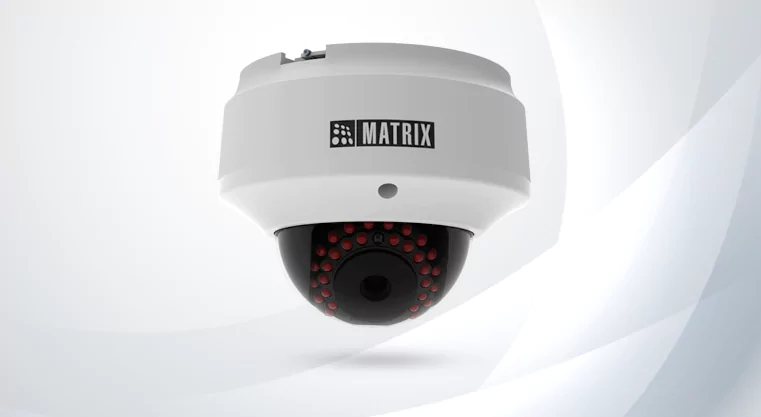

Project Series Dome Camera
Project Series Dome Camera
Telsol offers you Project series IP cameras that are designed for large enterprises and project environments. These sturdy cameras are designed with superior components to withstand harsh environments. Not only designed using cutting-edge components, but these cameras also offer exceptional performance.
Low light sensitivity sensors, image optimizing technologies, and smart analytics ensure that you get superior performance. The cameras are offered in 2MP, 5MP and 8MP variants. Moreover, you get focal lengths of 2.8mm, 3.6mm, 4mm, and 6mm for fixed lens variants. Furthermore for varifocal and motorized varifocal the focal length is 2.8mm - 12mm.
KEY FEATURES
Core Technologies
- Back-illuminated CMOS Sensor (Sony STARVIS series)
- True WDR (120dB)
- Camera Initiation
- Night Vision upto 30m
- 3D Digital Noise Reduction
Optimizing Resources
- Adaptive Streaming
- Smart Streaming
- H.265 Compression Technology
- 512GB Edge Storage
Smart Technologies
- Motion Detection
- Intrusion Detection
- Tripwire Detection
- Tamper Detection
Compliances
- CE, FCC, and BIS Compliant
- RDSO Compliant
- Ingress Protection (IP67)
ARCHITECTURE
Variants
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
|
CIDR80FL28CWS/P
|
CIDR80FL36CWS/P
|
CIDR80FL60CWS/P
|
|
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 3.6mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
HFOV (degrees) 84° VFOV (degrees) 47.8° DFOV (degrees) 96.4° |
HFOV (degrees) 51.26° VFOV (degrees) 28.84° DFOV (degrees) 58.74° |
| IR Range | Up to 50m | Up to 50m | Up to 50m |
| CIDR80FL28CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
| IR Range | Up to 50m |
| CIDR80FL40CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 3.6mm |
| Field of View (FOV) | HFOV (degrees) 84° VFOV (degrees) 47.8° DFOV (degrees) 96.4° |
| IR Range | Up to 50m |
| CIDR80FL60CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 51.26° VFOV (degrees) 28.84° DFOV (degrees) 58.74° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
|
CIDR80ML12CWP
|
|
|---|---|
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| Focal Length | 2.8mm-12mm |
| Field of View (FOV) | HFOV (degrees) 108.1-30.3° DFOV (degrees) 130.9-34.8° VFOV (degrees) 56.3-17.1° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIDR50FL28CWS/P | CIDR50FL40CWS/P | CIDR50FL60CWS/P | |
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 4mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 107.6° VFOV (degrees) 57° DFOV (degrees) 127.62° |
HFOV (degrees) 87.6° VFOV (degrees) 46.4° DFOV (degrees) 104.5° |
HFOV (degrees) 54.3° VFOV (degrees) 29.2° DFOV (degrees) 63° |
| IR Range | Up to 50m | Up to 50m | Up to 50m |
| CIDR50FL28CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 107.6° VFOV (degrees) 57° DFOV (degrees) 127.62° |
| IR Range | Up to 50m |
| CIDR50FL40CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 4mm |
| Field of View (FOV) | HFOV (degrees) 87.6° VFOV (degrees) 46.4° DFOV (degrees) 104.5° |
| IR Range | 30m |
| CIDR50FL60CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 54.3° VFOV (degrees) 29.2° DFOV (degrees) 63° |
| IR Range | 30m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIDR50VL12CWS | |
|---|---|
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| Focal Length | 2.8mm-12mm |
| Field of View (FOV) | HFOV (degrees) 106-32° VFOV (degrees) 73-23° DFOV (degrees) 142-39° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIDR50MVL12CWP | |
|---|---|
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| Focal Length | 2.8mm-12mm |
| Field of View (FOV) | HFOV (degrees) 106-32° VFOV (degrees) 73-23° DFOV (degrees) 142-39° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIDR20FL28CWS/P | CIDR20FL36CWS/P | CIDR20FL60CWS/P | |
|---|---|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) | 1/2.8” SONY CMOS (STARVIS Series) | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8mm | 3.6mm | 6mm |
| FOV | HFOV (degrees) 106.9° VFOV(degrees) 56.9° DFOV(degrees) 127.9° |
HFOV (degrees) 87.5° VFOV(degrees) 44.4° DFOV(degrees) 104.9° |
HFOV (degrees) 54° VFOV(degrees) 29.03° DFOV(degrees) 62.96° |
| IR Range | Up to 50m | Up to 50m | Up to 50m |
| CIDR20FL28CWS/P | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8mm |
| FOV | HFOV (degrees) 106.9° VFOV(degrees) 56.9° DFOV(degrees) 127.9° |
| IR Range | Up to 50m |
| CIDR20FL36CWS/P | |
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 3.6mm |
| FOV | HFOV (degrees) 87.5° VFOV(degrees) 44.4° DFOV(degrees) 104.9° |
| IR Range | Up to 50m |
| CIDR20FL60CWS/P | |
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 6mm |
| FOV | HFOV (degrees) 54° VFOV(degrees) 29.03° DFOV(degrees) 62.96° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIDR20VL12CWS | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8-12mm |
| FOV | HFOV (degrees) 98° to 33° VFOV (degrees) 51° to 19° DFOV (degrees) 116° to 38° |
| IR Range | Up to 50m |
| CIDR20VL12CWS | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8-12mm |
| FOV | HFOV (degrees) 98° to 33° VFOV (degrees) 51° to 19° DFOV (degrees) 116° to 38° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIDR20MVL12CWP | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8-12mm |
| FOV | HFOV (degrees) 98° to 33° VFOV(degrees) 51° to 19° DFOV(degrees) 116° to 38° |
| IR Range | Up to 50m |
| CIDR20MVL12CWP | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8-12mm |
| FOV | HFOV (degrees) 98° to 33° VFOV(degrees) 51° to 19° DFOV(degrees) 116° to 38° |
| IR Range | Up to 50m |
Download Technical Specifications datasheet of any camera variant for detailed information.
Certification
*Note: Certifications may vary from variant to variant.
