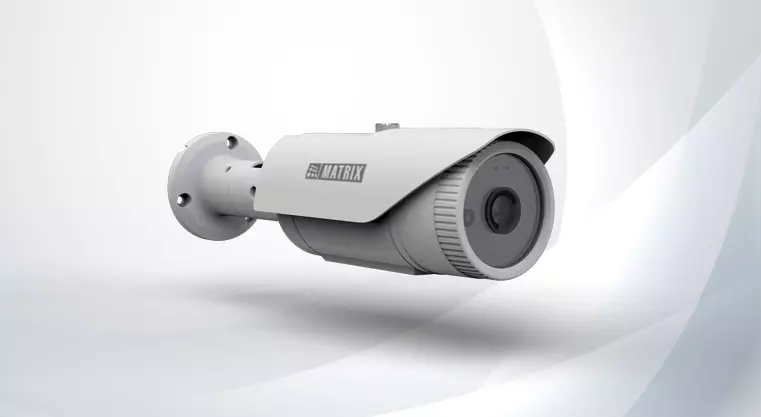

Project Series Bullet Camera
Project Series Bullet Camera
Telsol offers the best-in-class Bullet IP Cameras. The Project series has been designed for large enterprises and for project environments where cameras with sturdy builds are required. The back-illuminated CMOS sensor of the Sony STARVIS series powers the camera and delivers crystal clear images even in 0.01 Lux. Optimizing surveillance resource technologies make sure that your resources especially bandwidth and storage are utilized optimally.
The cameras are offered in variants with different focal lengths in 2MP, 5MP and 8MP Resolution. Furthermore, the focal lengths for fixed variants include 2.8mm, 3.6mm (for 2MP, 8MP), 4mm (for 5MP), and 6mm. Besides this, for manual varifocal and motorized varifocal lenses, you are offered focal length of 2.8 -12mm.
KEY FEATURES
Core Technologies
- Back-illuminated CMOS Sensor (Sony STARVIS series)

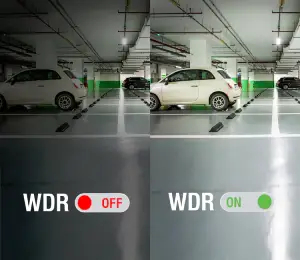

- True WDR (120dB)
- Camera Initiation
- Night Vision upto 30m
- 3D Digital Noise Reduction
Optimizing Resources
- Adaptive Streaming
- Smart Streaming
- H.265 Compression Technology
- 512GB Edge Storage
Smart Technologies
- Motion Detection
- Intrusion Detection
- Tripwire Detection
- Tamper Detection
Compliances
- CE, FCC, and BIS Compliant
- RDSO Compliant
- Ingress Protection (IP67)

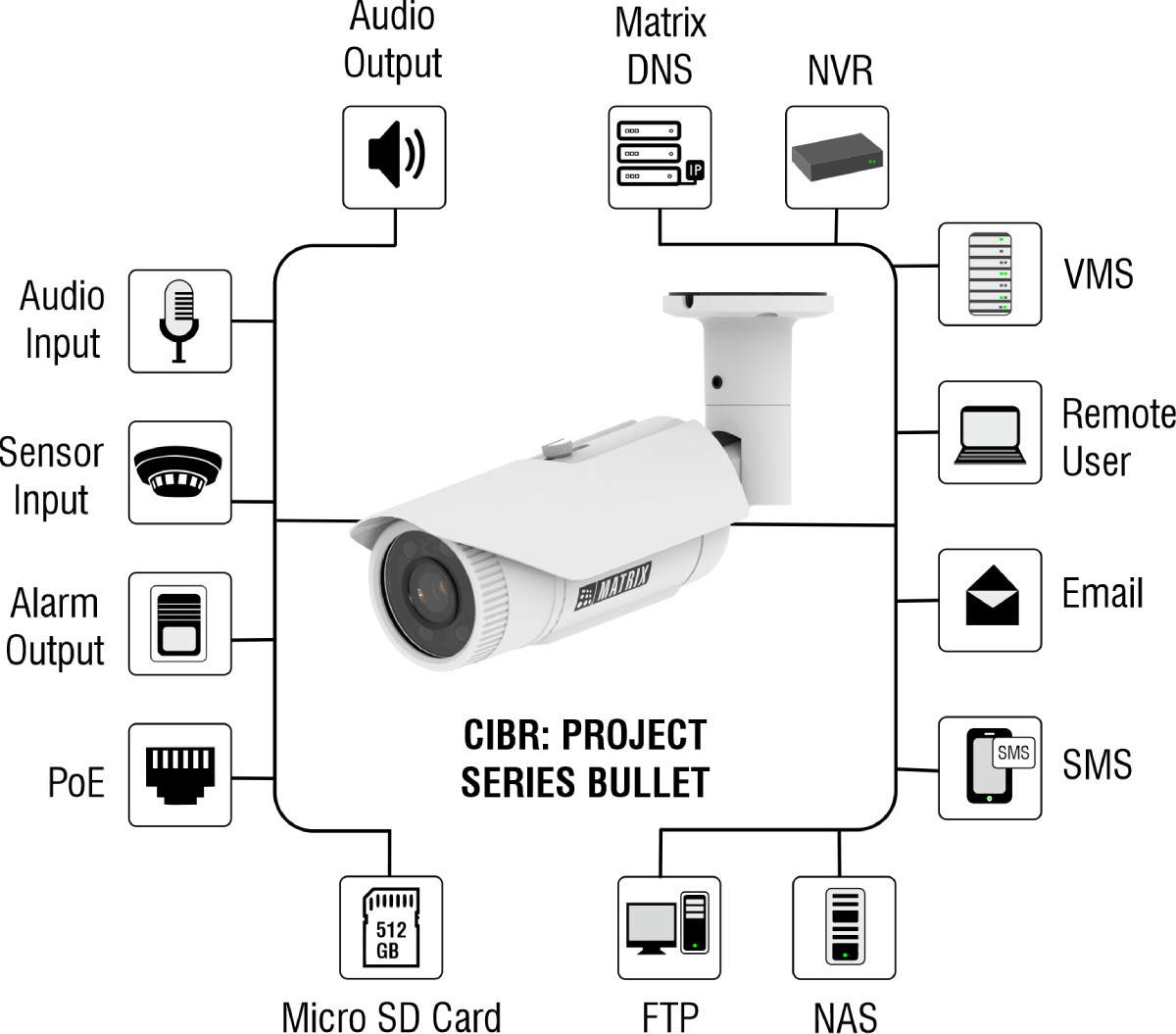

ARCHITECTURE
Variants
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
|
CIBR80FL28CWS/P
|
CIBR80FL36CWS/P
|
CIBR80FL60CWS/P
|
|
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 3.6mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
HFOV (degrees) 84° VFOV (degrees) 47.8° DFOV (degrees) 96.4° |
HFOV (degrees) 51.26° VFOV (degrees) 28.84° DFOV (degrees) 58.74° |
| IR Range | Up to 50m | Up to 50m | Up to 50m |
|
CIBR50FL28CWS/P
|
|
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
| IR Range | Up to 50m |
|
CIBR50FL40CWS/P
|
|
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 3.6mm |
| Field of View (FOV) | HFOV (degrees) 84° VFOV (degrees) 47.8° DFOV (degrees) 96.4° |
| IR Range | Up to 50m |
|
CIBR50FL60CWS/P
|
|
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 51.26° VFOV (degrees) 28.84° DFOV (degrees) 58.74° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
|
CIBR80ML12CWP
|
|
|---|---|
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| Focal Length | 2.8mm-12mm |
| Field of View (FOV) | HFOV (degrees) 108.1-30.3° DFOV (degrees) 130.9-34.8° VFOV (degrees) 56.3-17.1° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIBR50FL28CWS/P | CIBR50FL40CWS/P | CIBR50FL60CWS/P | |
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 4mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 107.6° VFOV (degrees) 57° DFOV (degrees) 127.62° |
HFOV (degrees) 87.6° VFOV (degrees) 46.4° DFOV (degrees) 104.5° |
HFOV (degrees) 54.3° VFOV (degrees) 29.2° DFOV (degrees) 63° |
| IR Range | Up to 50m | Up to 50m | Up to 50m |
| CIBR50FL28CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 107.6° VFOV (degrees) 57° DFOV (degrees) 127.62° |
| IR Range | Up to 50m |
| CIBR50FL40CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 4mm |
| Field of View (FOV) | HFOV (degrees) 87.6° VFOV (degrees) 46.4° DFOV (degrees) 104.5° |
| IR Range | 30m |
| CIBR50FL60CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 54.3° VFOV (degrees) 29.2° DFOV (degrees) 63° |
| IR Range | 30m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIBR50VL12CWS/P | |
|---|---|
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| Focal Length | 2.8mm-12mm |
| Field of View (FOV) | HFOV (degrees) 106-32° VFOV (degrees) 73-23° DFOV (degrees) 142-39° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIBR50MVL12CWS/P | |
|---|---|
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| Focal Length | 2.8mm-12mm |
| Field of View (FOV) | HFOV (degrees) 106-32° VFOV (degrees) 73-23° DFOV (degrees) 142-39° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIBR20FL28CWS/P | CIBR20FL36CWS/P | CIBR20FL60CWS/P | |
|---|---|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) | 1/2.8” SONY CMOS (STARVIS Series) | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8mm | 3.6mm | 6mm |
| FOV | HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
HFOV (degrees) 87.5° VFOV(degrees) 44.4° DFOV(degrees) 104.9° |
HFOV (degrees) 54° VFOV (degrees) 29.03° DFOV (degrees) 62.96° |
| IR Range | Up to 50m | Up to 50m | Up to 50m |
| CIDR20FL28CWS/P | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8mm |
| FOV | HFOV (degrees) 106.9° VFOV(degrees) 56.9° DFOV(degrees) 127.9° |
| IR Range | Up to 50m |
| CIDR20FL36CWS/P | |
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 3.6mm |
| FOV | HFOV (degrees) 87.5° VFOV(degrees) 44.4° DFOV(degrees) 104.9° |
| IR Range | Up to 50m |
| IR Type | Auto / Manual |
| CIDR20FL60CWS/P | |
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 6mm |
| FOV | HFOV (degrees) 54° VFOV (degrees) 29.03° DFOV (degrees) 62.96° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIBR20VL12CWS | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8-12mm |
| FOV | HFOV (degrees) 98° to 33° VFOV (degrees) 51° to 19° DFOV (degrees) 116° to 38° |
| IR Range | Up to 50m |
- SONY STARVIS Sensor
- H.265 Compression
- True WDR (120dB)
- Smart Streaming and Adaptive Streaming
- On-board storage (512GB)
- High Signal-to-Noise Ratio (>70dB)
| CIBR20MVL12CWP | |
|---|---|
| Sensor Type and Size | 1/2.8” SONY CMOS (STARVIS Series) |
| Focal Length | 2.8-12mm |
| FOV | HFOV (degrees) 98° to 33° VFOV(degrees) 51° to 19° DFOV(degrees) 116° to 38° |
| IR Range | Up to 50m |
Download Technical Specifications datasheet of any camera variant for detailed information.
