Professional Series Dome Camera
Professional Series Dome Camera
Telsol brings to you Professional Series cameras that are designed to meet the dynamic needs of small and medium-scale enterprises. The Dome variant offered serves the need for indoor surveillance. The cameras are powered by cutting-edge technologies like superior sensors, image optimizing technologies, and smart analytics.
The sturdy design ensures that the cameras can withstand harsh environments. Besides this, real-time alerts ensure that any security breaches are mitigated instantly. The variants are offered in 2MP, 5MP and 8MP resolution with focal lengths from 2.8mm to 6mm.
KEY FEATURES
Core Technologies
- Back-illuminated CMOS Sensor (Sony STARVIS series)
- True WDR (120dB)
- Camera Initiation
- Night Vision upto 30m
- 3D Digital Noise Reduction
Optimizing Resources
- Adaptive Streaming
- Smart Streaming
- H.265 Compression Technology
- 512GB Edge Storage
Smart Technologies
- Motion Detection
- Intrusion Detection
- Tripwire Detection
- Tamper Detection
Compliances
- CE, FCC, and BIS Compliant
- Ingress Protection (IP67)
- Impact Protection (IK10)

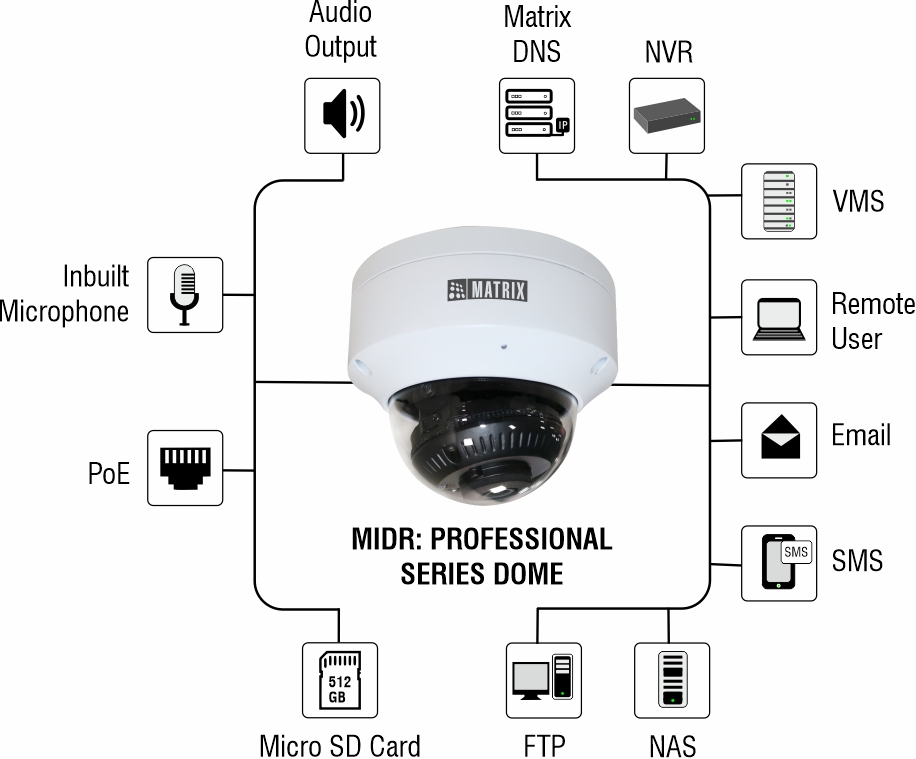

ARCHITECTURE
Variants
Technical Specifications
|
MIDR80FL28CWS/P
|
MIDR80FL36CWS/P
|
MIDR80FL60CWS/P
|
|
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 8MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 8MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 3.6mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 106.9°
VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
HFOV (degrees) 84°
VFOV (degrees) 47.8° DFOV (degrees) 96.4° |
HFOV (degrees) 51.26°
VFOV (degrees) 28.84° DFOV (degrees) 58.74° |
| IR Range | Up to 30m | Up to 30m | Up to 30m |
|
MIDR80FL28CWS/P
|
|
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 106.9°
VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
| IR Range | Up to 30m |
|
MIDR80FL36CWS/P
|
|
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 3.6mm |
| Field of View (FOV) | HFOV (degrees) 84°
VFOV (degrees) 47.8° DFOV (degrees) 96.4° |
| IR Range | Up tp 30m |
|
MIDR80FL60CWS/P
|
|
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 8MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 51.26°
VFOV (degrees) 28.84° DFOV (degrees) 58.74° |
| IR Range | Up to 30m |
Download Technical Specifications datasheet of any camera variant for detailed information.
Technical Specifications
| MIDR50FL28CWS/P | MIDR50FL40CWS/P | MIDR50FL60CWS/P | |
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 5MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
1/2.8" SONY - CMOS 5MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 4mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 107.6°
VFOV (degrees) 57° DFOV (degrees) 127.62° |
HFOV (degrees) 87.6°
VFOV (degrees) 46.4° DFOV (degrees) 104.5° |
HFOV (degrees) 54.3°
VFOV (degrees) 29.2° DFOV (degrees) 63° |
| IR Range | Up to 30m | Up to 30m | Up to 30m |
Download Technical Specifications datasheet of any camera variant for detailed information.
| MIDR50FL28CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 107.6°
VFOV (degrees) 57° DFOV (degrees) 127.62° |
| IR Range | Up to 30m |
| MIDR50FL40CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 4mm |
| Field of View (FOV) | HFOV (degrees) 87.6°
VFOV (degrees) 46.4° DFOV (degrees) 104.5° |
| IR Range | Up to 30m |
| MIDR50FL60CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 5MP Active Pixel
Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 54.3°
VFOV (degrees) 29.2° DFOV (degrees) 63° |
| IR Range | Up to 30m |
Download Technical Specifications datasheet of any camera variant for detailed information.
Technical Specifications
| MIDR20FL28CWS/P | MIDR20FL36CWS/P | MIDR20FL60CWS/P | |
|---|---|---|---|
| IMAGE SENSOR | |||
| Sensor Type and Size | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| FIXED LENS | |||
| Focal Length | 2.8mm | 3.6mm | 6mm |
| Field of View (FOV) | HFOV (degrees) 106.9°
VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
HFOV (degrees) 87.5°
VFOV (degrees) 44.4° DFOV (degrees) 104.9° |
HFOV (degrees) 54°
VFOV (degrees) 29.03° DFOV (degrees) 62.96° |
| IR Range | Up to 30m | Up to 30m | Up to 30m |
Download Technical Specifications datasheet of any camera variant for detailed information.
| MIDR20FL28CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 2.8mm |
| Field of View (FOV) | HFOV (degrees) 106.9°
VFOV (degrees) 56.9° DFOV (degrees) 127.9° |
| IR Range | Up to 30m |
| MIDR20FL36CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 3.6mm |
| Field of View (FOV) | HFOV (degrees) 87.5°
VFOV (degrees) 44.4° DFOV (degrees) 104.9° |
| IR Range | Up to 30m |
| MIDR20FL60CWS/P | |
|---|---|
| IMAGE SENSOR | |
| Sensor Type and Size | 1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series) |
| LENS | |
| Focal Length | 6mm |
| Field of View (FOV) | HFOV (degrees) 54°
VFOV (degrees) 29.03° DFOV (degrees) 62.96° |
| IR Range | Up to 30m |
Download Technical Specifications datasheet of any camera variant for detailed information.
Certification
*Note: Certifications may vary from variant to variant.
