Professional Series bullet Camera

Telsol brings you Professional series IP cameras that are designed for small-scale enterprises. The bullet cameras are designed to meet outdoor as well as indoor surveillance needs. The cameras are designed using superior components to withstand harsh weather. Apart from this, cutting-edge technology delivers exceptional performance and saves your enterprise resources too. Next, intelligent video analytics lead to real-time security. You get cameras in variants of 2MP, 5MP and 8MP resolution with focal lengths from 2.8mm to 6mm.

KEY FEATURES

Core Technologies

Back-illuminated CMOS Sensor (Sony STARVIS series)
True WDR (120dB)
Camera Initiation
Night Vision upto 30m
3D Digital Noise Reduction

Optimizing Resources

Adaptive Streaming
Smart Streaming
H.265 Compression Technology
512GB Edge Storage

Smart Technologies

Motion Detection
Intrusion Detection
Tripwire Detection
Tamper Detection

Compliances

CE, FCC, and BIS Compliant
Ingress Protection (IP66)

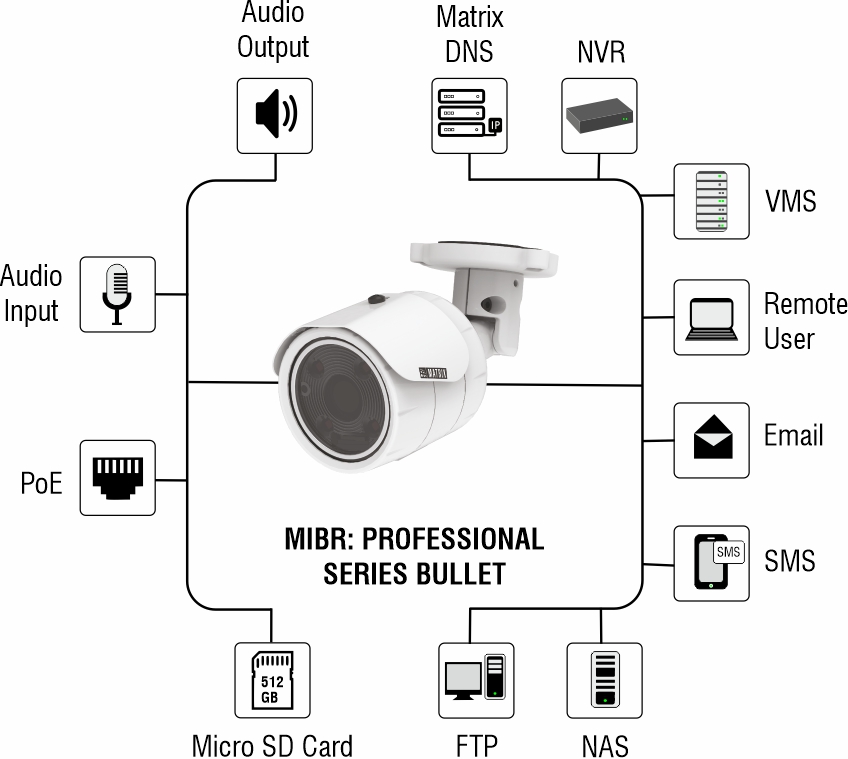

ARCHITECTURE

Variants

Bullet IP Camera 8MP

Bullet IP Camera 5MP

Bullet IP Camera 2MP

Technical Specifications

	MIBR80FL28CWS/P	MIBR80FL36CWS/P	MIBR80FL60CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)	1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)	1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
FIXED LENS
Focal Length	2.8mm	3.6mm	6mm
Field of View (FOV)	HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9°	HFOV (degrees) 84° VFOV (degrees) 47.8° DFOV (degrees) 96.4°	HFOV (degrees) 51.26° VFOV (degrees) 28.84° DFOV (degrees) 58.74°
IR Range	Up to 30m	Up to 30m	Up to 30m

MIBR80FL28CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
FIXED LENS
Focal Length	2.8mm
Field of View (FOV)	HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9°
IR Range	Up to 30m

MIBR80FL36CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
FIXED LENS
Focal Length	3.6mm
Field of View (FOV)	HFOV (degrees) 84° VFOV (degrees) 47.8° DFOV (degrees) 96.4°
IR Range	Up tp 30m

MIBR80FL60CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 8MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
FIXED LENS
Focal Length	6mm
Field of View (FOV)	HFOV (degrees) 51.26° VFOV (degrees) 28.84° DFOV (degrees) 58.74°
IR Range	Up to 30m

Download Technical Specifications datasheet of any camera variant for detailed information.

Technical Specifications

	MIBR50FL28CWS/P	MIBR50FL40CWS/P	MIBR50FL60CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
FIXED LENS
Focal Length	2.8mm	4mm	6mm
Field of View (FOV)	HFOV (degrees) 107.6° VFOV (degrees) 57° DFOV (degrees) 127.62°	HFOV (degrees) 87.6° VFOV (degrees) 46.4° DFOV (degrees) 104.5°	HFOV (degrees) 54.3° VFOV (degrees) 29.2° DFOV (degrees) 63°
IR Range	Up to 30m	Up to 30m	Up to 30m

Download Technical Specifications datasheet of any camera variant for detailed information.

MIBR50FL28CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Focal Length	2.8mm
Field of View (FOV)	HFOV (degrees) 107.6° VFOV (degrees) 57° DFOV (degrees) 127.62°
IR Range	Up to 30m

MIBR50FL40CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Focal Length	4mm
Field of View (FOV)	HFOV (degrees) 87.6° VFOV (degrees) 46.4° DFOV (degrees) 104.5°
IR Range	Up to 30m

MIBR50FL60CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 5MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Focal Length	6mm
Field of View (FOV)	HFOV (degrees) 54.3° VFOV (degrees) 29.2° DFOV (degrees) 63°
IR Range	Up to 30m

Download Technical Specifications datasheet of any camera variant for detailed information.

Technical Specifications

	MIBR20FL28CWS/P	MIBR20FL36CWS/P	MIBR20FL60CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
FIXED LENS
Focal Length	2.8mm	3.6mm	6mm
Field of View (FOV)	HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9°	HFOV (degrees) 87.5° VFOV (degrees) 44.4° DFOV (degrees) 104.9°	HFOV (degrees) 54° VFOV (degrees) 29.03° DFOV (degrees) 62.96°
IR Range	Up to 30m	Up to 30m	Up to 30m

Download Technical Specifications datasheet of any camera variant for detailed information.

MIBR20FL28CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Focal Length	2.8mm
Field of View (FOV)	HFOV (degrees) 106.9° VFOV (degrees) 56.9° DFOV (degrees) 127.9°
IR Range	Up to 30m

MIBR20FL36CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Focal Length	3.6mm
Field of View (FOV)	HFOV (degrees) 87.5° VFOV (degrees) 44.4° DFOV (degrees) 104.9°
IR Range	Up to 30m

MIBR20FL60CWS/P
IMAGE SENSOR
Sensor Type and Size	1/2.8" SONY - CMOS 2MP Active Pixel Progressive Scan, Back Illuminated Image sensor (STARVIS Series)
LENS
Focal Length	6mm
Field of View (FOV)	HFOV (degrees) 54° VFOV (degrees) 29.03° DFOV (degrees) 62.96°
IR Range	Up to 30m
