IP PTZ Camera

SATATYA PTZ Cameras

The need for surveillance is inevitable in the modern world, where video surveillance is no longer just associated with managing the threat. The scope of video surveillance has gone beyond its traditional purpose. It is about increasing productivity, monitoring connected spaces, and deriving insights from the business. Simultaneously, the cost of monitoring is touching skies where it becomes hard for the customers to realize the true purpose of surveillance.

Again, not only just organizations but also public authorities are also in need of video surveillance to control public spaces that are heavily crowded. To resolve such video surveillance backdrops, Telsol has introduced its PTZ cameras that are specifically designed to monitor large spaces eliminating the need for multiple cameras.

These cameras are powered by the Sony STARVIS back-illuminated sensors which deliver crystal clear images even in low light conditions. Apart from this, the H.265 compression technology reduces storage costs. At the same time, these cameras also come with enormous storage which aids in situations of network failures. Besides this, video analytics like Motion Detection, Intrusion Detection, and Tripwire ensure real-time security..

The cameras are not only designed to give superior performance but also are designed in line with national and international standards like CE, FCC, BIS, RoHS listed weather-resistant IP67 (33CWP) and IP66 (25CWP), and impact resistant (IK10).

KEY FEATURES

Core Technologies

Back-illuminated CMOS Sensor (Sony STARVIS series)
True WDR (140dB)
Up to 33x Optical Zoom
Night Vision upto 200m
3D Digital Noise Reduction

Optimizing Resources

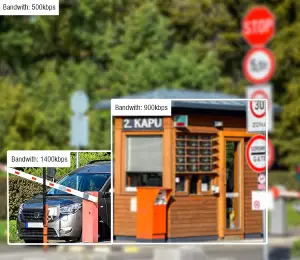

Adaptive Streaming
Smart Streaming
H.265 Compression Technology
256GB Edge Storage

Smart Technologies

Motion, Intrusion, and Tripwire Detection
8 Automatic Scan
500 Presets
Camera Initiation

Compliances

CE, FCC, BIS, and RoHS Compliant
Ingress Protection (IP67)
Impact Protection (IK10)

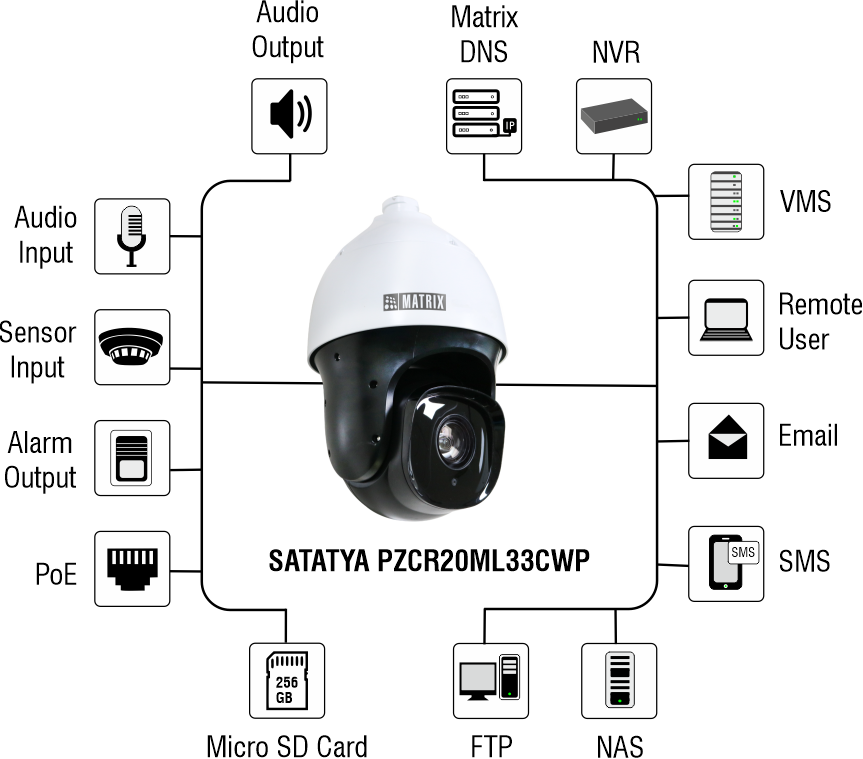

ARCHITECTURE

Variants

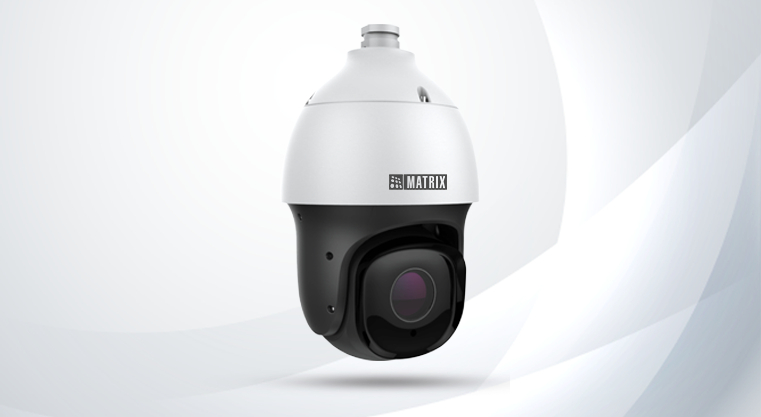

SATATYA PZCR20ML33CWP

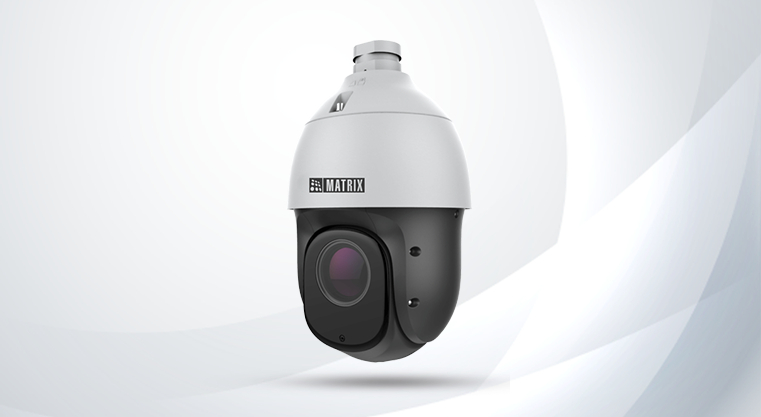

SATATYA PZCR20ML25CWP

Technical Specifications

Camera
Image Sensor	1/2.8” SONY – CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology – STARVIS Series)
Signal System	PAL/ NTSC
Minimum Illumination	Color: 0.001 lux @ F1.5, Monochrome: 0 lux with IR
Shutter Speed	1s – 1/100000s
Day and Night	IR Cut Filter with Auto Switch
Wide Dynamic Range	140dB
Optical Zoom	25x
Digital Zoom	16x
LENS
Focal Length	4.8mm – 120mm
Angle of View	Horizontal: 58.5° - 2.8° Vertical: 33.2° - 1.5°
IR Range	150m

Download Technical Specifications datasheet of any camera variant for detailed information.

Technical Specifications

Camera
Image Sensor	1/2.8” SONY – CMOS 2MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (EXMOR Technology – STARVIS Series)
Signal System	PAL/ NTSC
Minimum Illumination	Color: 0.001 lux @ F1.5, Monochrome: 0 lux with IR
Shutter Speed	1s – 1/100000s
Day and Night	IR Cut Filter with Auto Switch
Wide Dynamic Range	140dB
Optical Zoom	33x
Digital Zoom	16x
LENS
Focal Length	4.6mm – 152mm
Angle of View	Horizontal: 60° - 2.3° Vertical: 34.4° - 1.5°
IR Range	200m
