COSEC READER CB

COSEC READER CB

Most access control card readers are now totally open to being compromised and vulnerable to attacks because of copied and fake credentials. To overcome this problem, Matrix has come up with state-of-the-art technology. Matrix’s COSEC READER CB is Bluetooth based contactless smart card reader which facilitates easy communication through smartphone. Ultimately, this access card reader gives immense and unparalleled comfort to the user. It also supports widely used smart and proximity RFID cards for different applications. COSEC READER CB has a Wiegand interface to connect with third party access control panels. Compact size and secured communication between door card reader and controller make COSEC READER CB a convenient solution for Access Control applications in any organisation.

APPLICATIONS


Video Compression

Access Control




KEY FEATURES

Bluetooth over Mobile
  • Convenience
  • Security
Multiple Card Types
  • MIFARE® Smart
  • HID iCLASS
  • HID Prox
  • EM Prox card
Card Personality Module
  • Easy to Plug and Unplug
  • Easy to Upgrade
Compact Design
  • Fits with Any Building Design
  • Elegant
LED and Buzzer
  • Audio Visual Indication for Predefined Events
  • Faster Response
Secured Communication
  • SSL Encryption
  • Difficult to Breach
Work with Third Party Access Panel
  • Supports Universal Wiegand Interface
  • Interoperability
Multiple Interfaces
  • RS-485 and RS-232
  • Wiegand
Tamper Detection
  • Sense and Give Alarm
  • Higher Security
Easy to Use and Install
  • Faster Installation
  • Less Wiring
Deployment Modes
  • Work with Any COSEC Door Controller on RS-485 or RS-232
  • With PANEL LITE - No Server Requirement

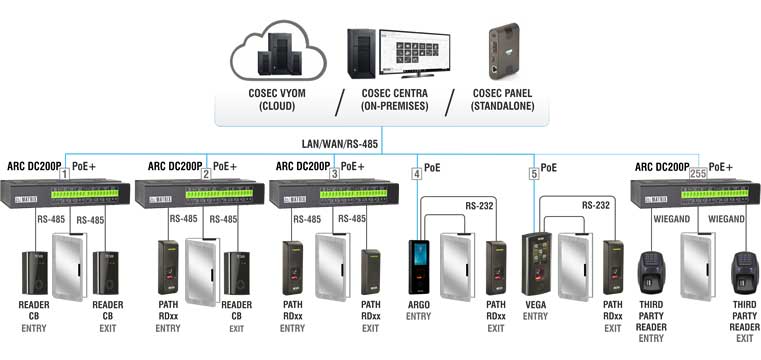

DEPLOYMENT DIAGRAM


Adaptive Streaming


TECHNICAL SPECIFICATIONS

GENERAL
Type A slave reader which can work with COSEC Door Controllers and 3rd party Wiegand interface Access Control Panel.
Credential Support Card and Mobile Credential over BLE
CAPACITY
User Capacity Depends on Master Device
Card Storage Capacity Depends on Master Device
CARD READER
Type of Card Support MIFARE Classic® Smart, HID iCLASS, EM Prox, HID Prox,
(CPM module Required; Supports DOOR CPM module)
Card Read Range Up to 5cm from Device Surface
INTERFACE
Tamper Detection Yes
AUDIO VISUALS
LED 4 Single Color LEDs
LED 1 - ALLOWED, LED 2 - DENIED, LED 3 - STATUS *, LED 4 - ALARM *
* Not used in Wiegand Communication
Buzzer Yes
COMMUNICATION
Built in Bluetooth YES (BLE 4.0 and above) Bluetooth Functionality will Work with COSEC APTA Application.
Reader Interface RS-232, RS-485 and Wiegand
Interface Support Length RS232 (3meter), RS485 (1200meter), Wiegand (150meter)
POWER
Input Power 5-16 VDC@ max 150MA
ENVIRONMENTAL
Operating Temperatures 0 °C to +50 °C (32°F to 122°F)
Humidity Range 10% to 95% RH Non-Condensing
CERTIFICATION
Certification CE, RoHS, BIS and FCC Part 15
PACKAGING
Packaging 1. Main unit - COSEC READER CB
2. Back Plate
3. Reader Cable Assembly
4. Screws and other Mounting Accessories

MIFARE and MIFARE Classic are trademarks of NXP B.V.
